非球面透镜

未命名-6-3

说明:

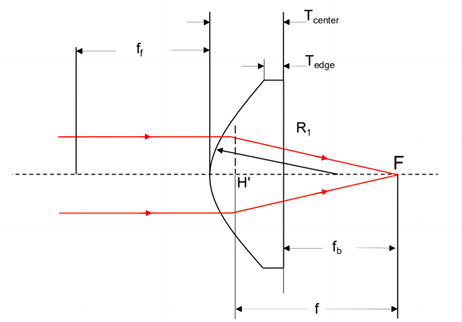

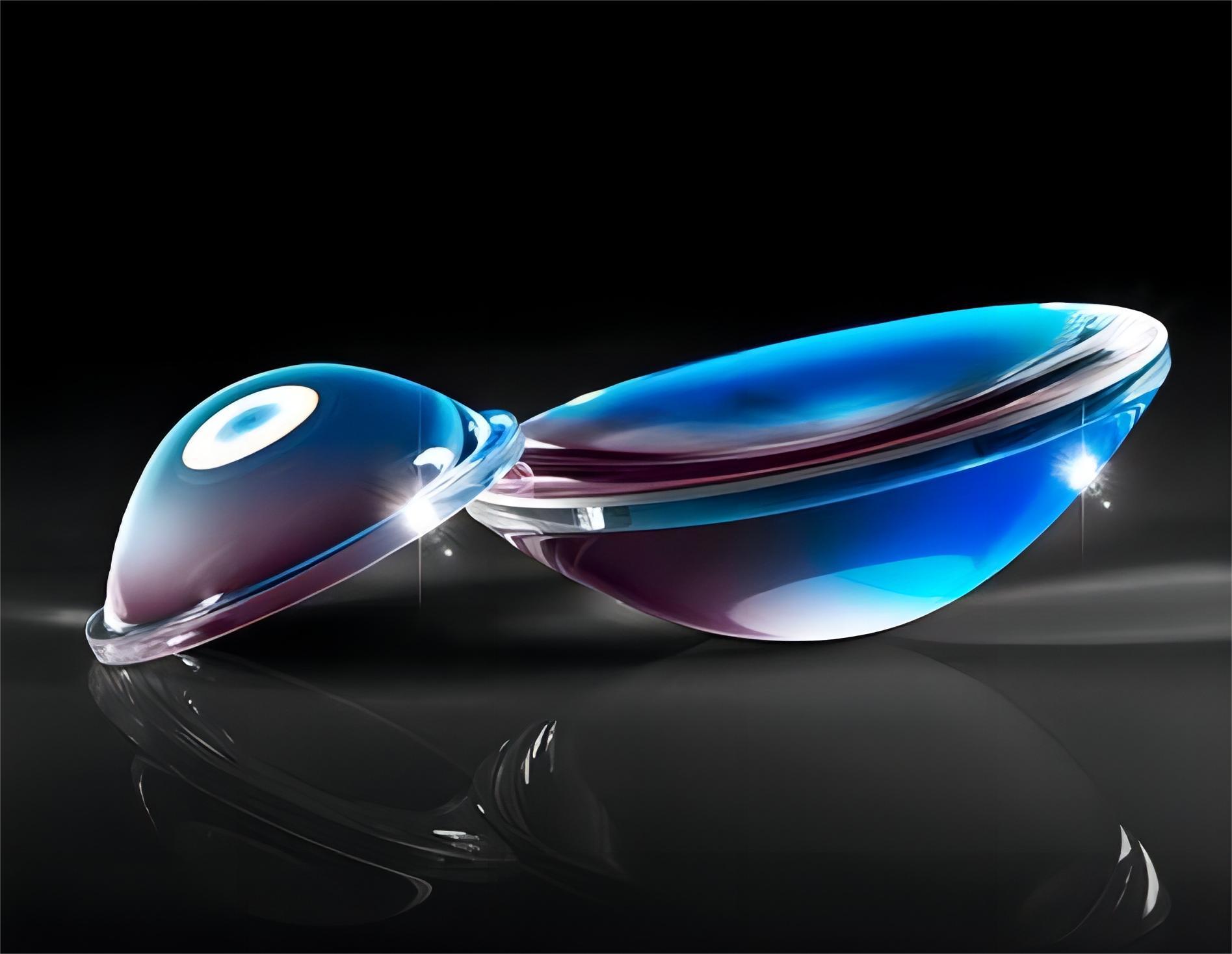

非球面透镜用于修正球差,包括条形码扫描、激光二极管准直或OEM 研发整合。 非球面透镜采用单一元件设计,这有助于最大限度地减少多透镜光学配件中的透镜数量。

所有透镜的设计波长为587.6nm,当透镜用于其他波段时需考虑由折射率变化带来的光学性能的变化,具体请咨询我司。





非球面透镜现货数据表:

型号 焦距 后截距 直径 中厚 边厚 形状 材料
A773 3.3 1.3 6 3 0.9 (| H-ZF12
A710 3.5 0.8 8.4 4.8 1.3 () H-LaK6A
A808 4 0.7 9.5 5.8 1.3 () H-LaK6A
A685 4.3 1.2 9.5 5.3 1 () H-ZPK1A
A330 4.5 1.7 10 6 1.5 () JGS1
A929 4.5 1.7 10 6 1.9 () H-K51
A780 4.7 2.3 5 2.5 2 (| H-K9L
A595 4.8 1.6 10 5.5 1.4 (| H-LaK61
A844 4.8 2.2 7.2 4 1.2 (| H-K9L
A747 5.3 2.6 7.9 4 1 (| H-K9L
A634 5.6 3.3 8 4 1.4 () H-ZK2
A763 5.8 2 10 5.8 1.9 (| H-K51
A874 6 4.2 6.8 2.8 0.6 (| H-K51
A901 6.2 5.8 9 3 1 () H-LaK54
A560 6.6 4.3 7.5 3.5 1.1 (| H-K51
A299 8 4 10 5.8 2.1 (| H-K51
A489 8 3.7 12.7 7.5 2 () H-K51
A906 8.2 5.7 12 5.5 2.3 () H-ZF2
A793 8.3 5.6 16 7 1.4 () H-K9L
A402 8.5 8 12 5.5 1.6 (| H-K9L
A871 8.5 5.6 11 4.4 2 (| H-K51
A750 8.6 3.9 15 7.2 1 (| H-K9L
A828 8.7 5.7 12.5 4.6 1.5 (| H-K9L
A898 9.1 6.5 10 3.9 1 (| H-K9L
A928 9.2 6.2 12.5 4.6 1 (| H-K9L
A355 9.3 4.4 16 7.5 1.2 (| H-K9L
A294 10 7 12 5.8 1.9 (| H-K51
A834 10.2 6.5 18 6.5 1.8 (| H-K51
A788 10.5 3.3 23 13 2.7 () H-LaK6A
A366 11 6 16 8 2.6 (| H-F4
A824 11.1 5 19.9 10.9 2.4 () H-K51
A766 11.2 7.9 13 5 1.5 (| H-K9L
A872 11.5 7 14.8 6.8 1.6 (| H-K51
A805 11.7 6.7 15 7.5 2 (| H-K51
A372 11.9 7.1 20 8.8 1.1 () H-K9L
A295 12 7 15 8 2.5 (| H-K51
A394 12 6.7 17 8 1.9 (| H-K51
A540 12.2 6.9 15 8 2.5 (| H-K51
A530 12.3 8.6 15 6 1.9 (| H-F4
A923 12.4 9.5 12 4.5 1.8 (| H-K51
A700 12.5 7.1 20 9 2 (| H-ZF2
A856 12.7 9.4 12.7 5 1.6 (| H-K51
A593 13 7 19.5 10 2.2 () JGS1
A797 13.4 5.7 26 14 3.5 () H-LaK6A
A761 13.5 8.6 18 7.4 1.9 (| H-K51
A313 14 10.2 12.9 5.7 2.6 (| H-K9L
A477 14.3 9.1 17.9 7.9 1.3 (| H-K51
A841 14.6 2 41 22.6 3.5 () H-ZF4A
A494 15 10 18 8.2 2.2 (| H-K51
A907 15 10.5 18 6.2 2 (| JGS2
A476 15.3 9.2 17.9 8.9 1.5 (| Corning 7980
A452 15.5 10.9 18 7 1.9 (| H-K9L
A526 15.9 12.3 16.5 5.5 1.5 (| H-K9L
A919 15.9 7.3 29 15 2.4 (| H-ZK3
A475 16 7.3 25.4 14 1.6 () H-K51
A868 16 9.1 20 10.5 3 (| H-K51
A796 16.2 9.9 31 12.2 2 () H-LaK6A
A704 16.3 10.4 20 9 2 (| H-K9L
A890 16.4 9.4 30 12.6 3 (| H-ZF7LA
A655 17 9.8 25 11 2 (| H-K51
A842 17.7 12.9 25 8.5 2 (| H-ZF6
A296 18 13 20 8 1.8 (| H-K51
A549 18 11.3 22.4 10.2 2.5 (| H-K51
A278 18 11.4 24 10 1.5 (| H-K51
A866 18 10.8 24.6 11.8 3.3 () H-ZK7A
A478 18.1 13.2 17.9 7.2 1.5 (| Corning 7980
A748 18.5 12.8 22.8 8.1 1.4 (| H-K51
A310 19 15.7 12 5 3.1 (| H-K51
A697 19.6 13.5 27.5 10.9 1.9 () H-K51
A292 20 12 25 12 2.8 (| H-K51
A893 20.2 13.9 23.8 9.2 1.2 (| JGS2
A891 20.6 15.2 30 10 4 (| H-ZF52A
A935 20.8 9 30 18 2.3 (| H-K51
A462 21.6 10.7 35 19 3 () H-K51
A740 22 9.6 35.9 21 4 () H-K51
A728 22 9.6 39.9 21 1.4 () H-K51
A903 22.2 15.5 37 11 1.1 (| H-LaK10
A306 23.5 14.3 30 14 3.9 (| H-K51
A528 23.5 15 32.5 13.5 1.9 () H-K51
A512 23.8 17 25 10.3 3.3 (| H-K51
A860 24 9.7 42 24 3.3 () H-K9L
A941 24 14.7 30 14.1 3 (| H-K51
A654 24.8 11.5 45 22.5 2.2 () H-K51
A290 25 19.4 25 8.5 1.8 (| H-K51
A587 25 14.2 40 16.5 1.9 (| H-K51
A755 25 15.2 40 15.5 3 () H-ZK3
A931 25.6 16.7 30 13.5 1.6 (| H-K51
A493 26 18 30 11.9 2.2 (| H-K51
A787 26 12 42 21.3 2.9 (| H-K51
A016 26.5 19.3 30 11 3 (| H-K51
A202 26.5 16 35 16 2 (| H-K9L
A415 28.2 18.3 39.9 15 2 (| H-K51
A816 28.3 20.2 31.9 12.4 2.5 (| H-K51
A617 29.4 20.3 35 13.9 4 (| H-K51
A143 29.5 20.9 40 15.5 3.7 () H-K51
A838 30 19 38.4 19 5.6 () H-K51
A785 30 17.6 52.2 23.8 3.2 () H-K9L
A541 30.3 17.1 40 20 2.3 (| H-K9L
A297 32 21 45 18.5 2.2 () H-K51
A495 32 17 50.8 25 2.3 () H-K51
A943 32 20.3 40 17.8 3 (| H-K51
A767 32.1 21.2 40 12 0.7 (| H-K9L
A882 32.2 23.2 51.4 16 1.6 (| H-LaF50B
A185 33 16.6 52 25 2.5 (| H-K51
A905 33.9 24.2 46.5 18.5 3 () H-PZ33
A293 40 26 50 21 2.6 (| H-K51
A329 49 44.4 30 7 2.4 (| H-K9L
A911 50 36.6 50 19.5 3.5 (| JGS1
A610 59.9 56.2 50 11 1.4 () H-K9L
A298 60 40 75 30 2.3 (| H-K51
A910 80 52 100 41 4.3 (| H-K51
A007 80.5 67.6 100 30.3 2 () H-K51
A037 115 91.6 120 35.6 3 (| H-K9L
A380 161.5 145 120 26 3.1 (| H-K9L
